Factory directly Tensile Testing Equipment - Static Gel Strength – Taige Detail:
Static Gel Strength Analyzer/
Introduction/
TG-15-400RP Static Gel Strength Analyzer is the most accurate analyzer. It can test the thickening time and static gel strength, operate and maintain easily
Specifications
Circuit part：
Input voltage 230VAC (±10%)
Input frequenc50-60 Hz
Input power 2000W
Electricity flow 20A
Dimension：
Height: 38cm
Width: 67cm
Depth: 38cm
Weight: 68kg
Operating temperature/:
Operating temperature32-105℉（0-40℃）
Operating humidity 0-95% noncondensing
Heater/
Power 1500W
Type Formed heater/cooling coil/
Controller UK EUROTHERM 3504 controller/3504
Drive element：
Drive motor/ 016 Hp， 36VDC
Drive speed 0-1000rpm (variable) 0-1000
TG-15-400RP
380*670*380mm (260kg)
Features/
Proven results with unrivaled, direct static gel strength measurement.
Cement slurry thickening test/range :0-100Bc
Computer for display of testing parameters and access to programmable features.
Digital temperature and consistency indication (static gel strength and pressure optional)
Maximum operating pressure to 103MPa
Maximum operating temperature to 204℃
Adjustable alarm for viscosity, gel strength levels
Rugged electronics assure performace
Configurations
Main body assembly/
UK EUROTHERM 3504 controller
UK High precision servo motor.
Heater ( cooling automatically)
Teat slurry cup ( resistant to high temperature and pressure)
Thermocouple
High-pressure valve

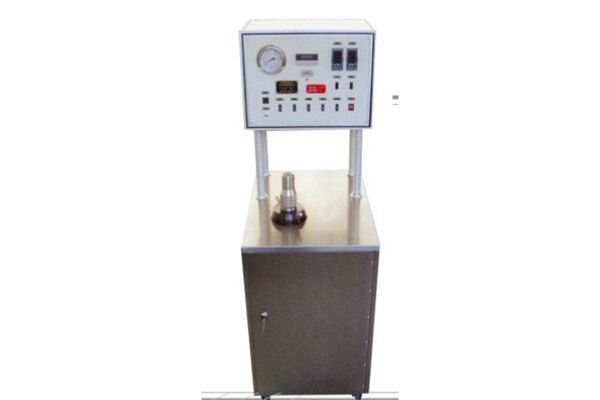

Product detail pictures:
