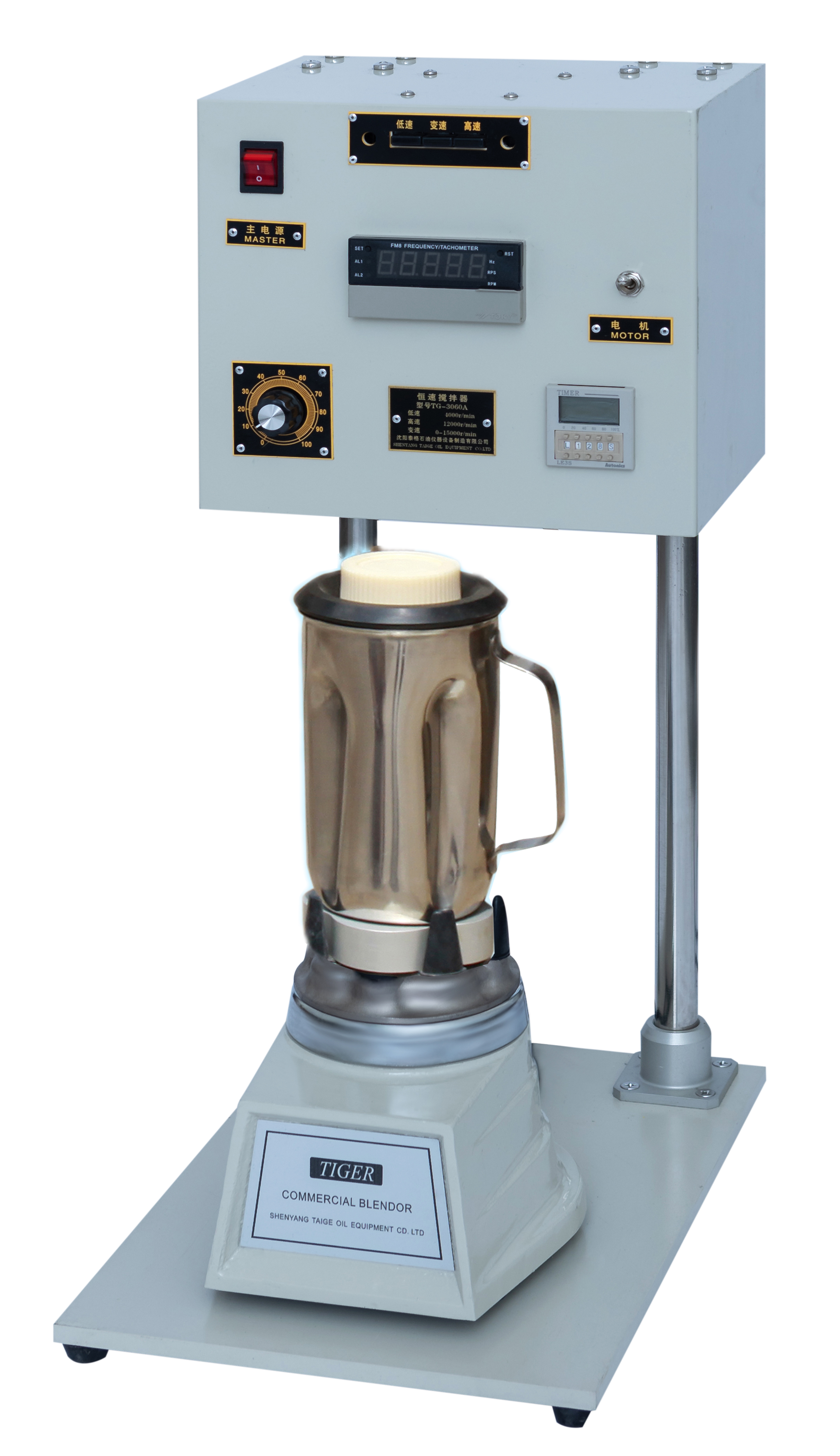

Constant Speed Mixer

The Model TG-3060 Constant Speed Blender, for blending cement slurry in compliance with
the API specification. TG-3060 mixers are engineered to operate at constant speeds thereby
mixing the slurry at an automatically-maintained, stable, constant shear rate. The highperformance
mixers are designed for heavy duty industrial applications and long life. They are
equipped with heavy duty motors, stainless steel mixing vessels and hardened long-life mixing
blades. An additional shaft seal and special electronic circuitry are added to the mixer motor
assembly to ensure its reliability. A large, stable base ensures that the mixer stays in-place
during operation. It also provides a means of consistently preparing fracturing fluids for testing.
The optional Torque Monitoring module evaluates the hydration and cross-link times of these
fluids.

Model TG-3060 mixer is extremely simple to operate with three speed control selections. API
specific speeds are preset and factory calibrated. These mixers also have a continuously
variable speed control function which is adjustable across the entire rpm range.
CONFIGURATIONS
*Control assembly including control circuit and speed controller
*Slurry cup assembly including stainless cup for sample and blade for mixing hardened sample

TECHNICAL SPECIFICATION
Slurry cup: 1 Liters Stainless steel Mixing Jar
Stirrer mixing blade Hardened blade
Constant speed selection: 4,000 rpm / 12,000 rpm with one-touch button
Adjustable speed range: 1,000 – 21,000 rpm
Maximum speed: 21,000 rpm
Speed controlling Speed sensor with Feedback control system
Speed monitoring display Digital Display, Speed displayed in rpm
Speed Compensation:
The automatic speed power compensation system to keep mixer run smoothly
incase ingredients added which may cause the viscosity changes during mixing
Motor power: 800 W
Dimensions (H x W x L) 68 x 41 x 29 cm
Weight 22 kgs
Electricity 220VAC / 50-60Hz
