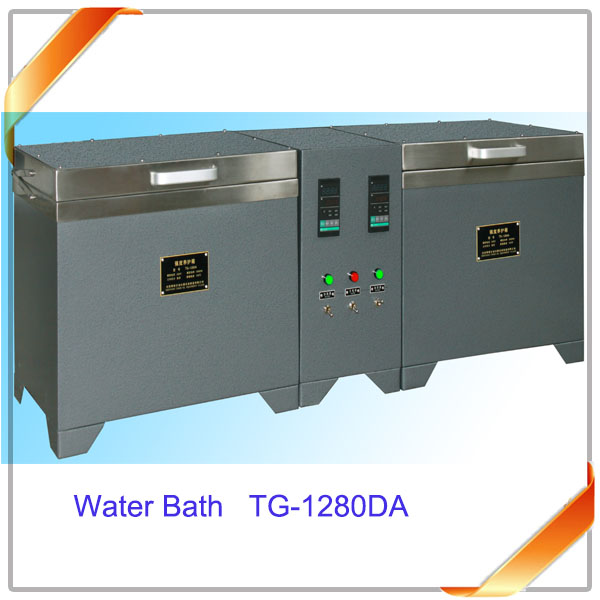

Atmosperic Curing Chamber, Water Bath

Water Bath Chamber is designed to prepare cement specimens for compressive strength test according to API Spec 10. Water Baths are ideal for maintaining temperature set points over a long period of time. Different sizes and depths of the bath chamber are available to meet your application.  Utility baths are available in analog or digital temperature control with ranges from ambient to 100℃. Water bath chamber provides one mean of curing cement specimens under atmospheric pressure.

Specifications

*  Operating Voltage: 220V±10%, 50HZ

*  Operating Pressure: atmospheric pressure

*  Maximum Operating Temperature: 100℃

Features

•  Unit is used to test cement specimens in accordance with API specification 10
•  Digital temperature controller
• Digitally displays temperature
• Test chamber accommodates 2-8 specimens
• Electronic Timer optional
• Coolant system optional

Model Specification
